Floorplan - 2014 Jayco Jay Flight Swift 234MBH
-
-
-
-
+6-
27ft long
-
5,110 lbs
-
Sleeps 6
-
1 slides
-
BunkhouseU Shaped Dinette

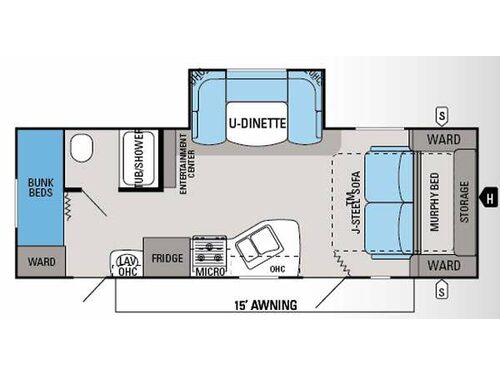

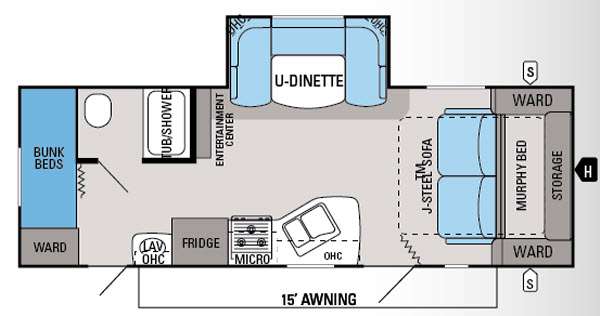

234MBH Floorplan
Specifications
| Sleeps | 6 | Slides | 1 |
| Length | 26 ft 11 in | Ext Width | 8 ft |
| Ext Height | 11 ft | Int Height | 6 ft 9 in |
| Hitch Weight | 525 lbs | GVWR | 7000 lbs |
| Dry Weight | 5110 lbs | Cargo Capacity | 1890 lbs |
| Fresh Water Capacity | 44 gals | Grey Water Capacity | 33 gals |
| Black Water Capacity | 33 gals | VIN | 1UJBJ0BM7E77J0095 |
Description
The Jay Flight Swift 234MBH travel trailer by Jayco offers a single slide and a rear bunk house.
As you enter the rear entrance, along the rear wall you will find a wardrobe and a set of bunk beds.
The bathroom has a toilet, and tub/shower. On the opposite side of the trailer you will find the sink.
In the kitchen area there is a refrigerator, three burner range, microwave, and double kitchen sink. The slide is a u-dinette. Next to the slide there is an entertainment center.
Along the front wall you will find a j-steel sofa with a murphy bed behind the sofa and wardrobes on either side of the bed.
Features
- 4 stabilizer jacks with sand pads (standard on select models)
- 6 gal. gas/electric DSI Atwood water heater
- 6.3 cu. ft. Norcold double-door refrigerator with temperature controls
- ABS tub surround
- Outside shower
- Oven
- 13,500-BTU A/C
- Bedspread
- Cable/satellite TV hookup
- Digital TV antenna
- Microwave
- Water heater bypass
- .024 mesa crimp exterior aluminum
- 30-amp service
- 5/8" tongue-and-groove plywood flooring
- Aerodynamic front profile
- Amber patio light
- Clamp ring, safety-glass windows with automotive gasket seals
- Double-wide corner mold extrusions
- Dual 20-lb. propane bottles
- E-Z Lube axles
- Exterior powered slideouts (most models)
- Fully integrated A-frame
- Galvanized-steel, impact-resistant wheel wells
- I-Class cambered structural steel I-beam frame
- Magnum Truss Roof System
- Marine-grade exterior speakers (2)
- One-piece, seamless Alpha ply roof material
- Pass-through storage (select models)
- Patio awning
- Radial tires
- Radius-cornered baggage doors
- Radius-cornered entrance door with window
- Spare tire with carrier
- Stabilizer jacks (4) with sand pads (standard on select models)
Interior
- 3-burner range with 9,000-BTU SuperBurner with range hood and exhaust fan
- 300-lb. rated bunk beds (600-lb. rating on double bunks) (select models)
- 4" quilted bunk mats (select models)
- 5 cu. ft. Norcold refrigerator with external temperature controls
- 6 gal. gas Atwood water heater
- Ball bearing drawer guides throughout, 75-lb. capacity with full extension
- Deep-bowl, 60/40 acrylic kitchen sink with high-rise faucet
- High-efficiency Atwood furnace
- Innerspring mattress
- J-Steel jack-knife sofa (select models)
- Jayco-made dinette cushions and window treatments
- Laminate countertops with T-mold edging
- Large overhead cabinetry
- Marine toilet with hand flush
- Metal alloy faucet fittings
- Multi-Media Premium Sound System with MP3/iPod input jacks
- Pleated window shades
- Plywood bunk, dinette and bunk platforms
- Power bath fan
- Removable shelves in pantry/wardrobe (select models)
- Screwed-and-glued Heritage Mocha cabinetry
- Shirt wardrobes in bedrooms
- Shower curtain with curved shower rack (select models)
- Under-bed storage on main beds
- Vinyl flooring
- Wood trimmed mirror in bathrooms
Floorplan Options
- Chil N' Stor (264BHS, 281BHS and 294BHS)
- Double-over-double bunk beds (264BH, 26BHS and 281BHS)
- Queen bed with bunk (198RD)
- Canadian Standards
- Convenience Package (optional on 198RD and 264BH) (Standard on 248RBS, 264BH, 265RLS, 281BHS, 287BHBE, and 294BHS) 6.3 cu. ft. double-door refrigerator, 6-gal. gas/electric DSI water heater, outside shower, oven, stabilizer jacks and tub surround
- Customer Value Package - 13,500-BTU A/C, cable/satellite TV hookup, digital TV antenna, microwave, bedspread and water heater bypass system
- Customer Value Package with 15,000-BTU A/C (select models)
- Enclosed underbelly
- Power Package - Power awning and power tongue jack
- Technology Package - 26" LED HDTV and DVD player
See us for a complete list of features and available options.
