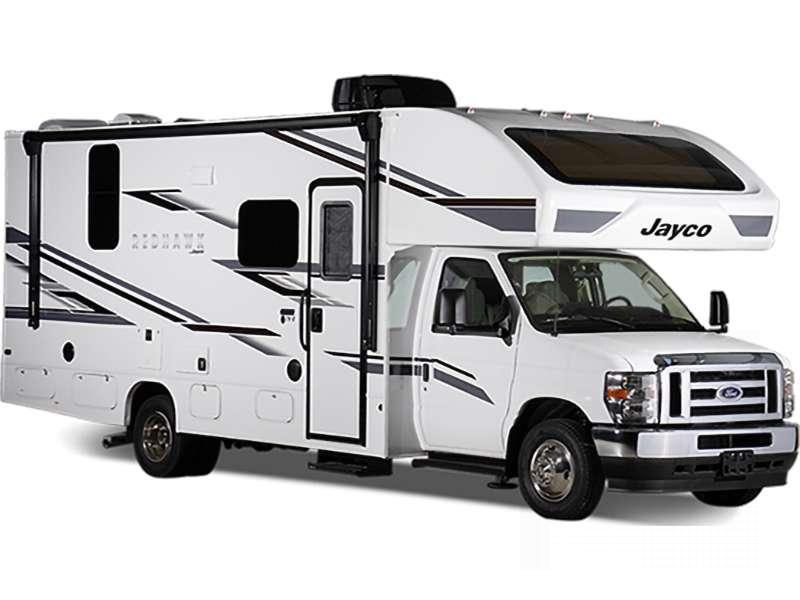

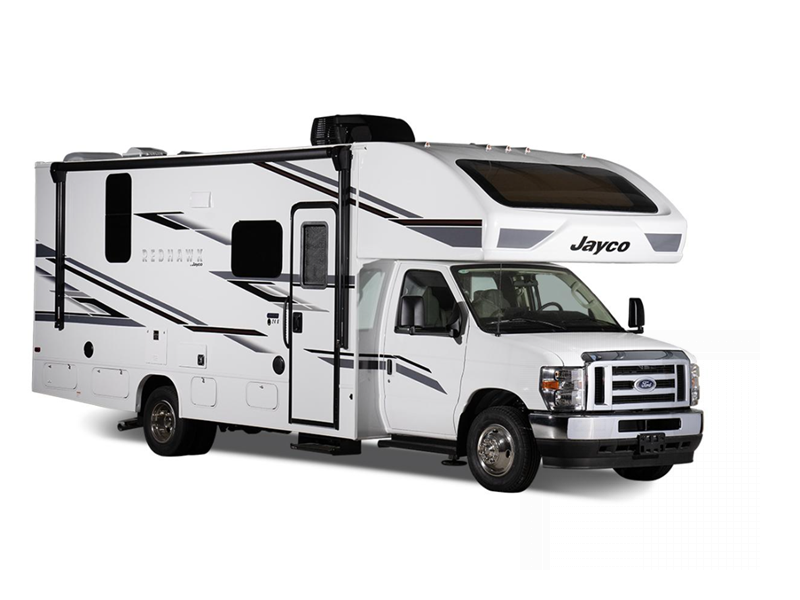

Jayco Redhawk Motor Home Class C
The Jayco Redhawk class C motorhome is the perfect choice for a quick weekend trip to the lake or an extended cross-country excursion. Inside its spacious interior you'll find all the things your family needs.
From the features in the JRide package, the Onan 4,000-watt MicroQuiet generator, and the power anti-lock brakes with power steering you can stay as long as you want after a safe and smooth ride to your favorite destination.
Get more than you pay for when you choose a Jayco Redhawk class C motorhome for your next traveling adventure.
-
Redhawk 22J
Jayco Redhawk 22J class C gas motorhome highlights: Cab-Over Bunk Single Slide ... more about Redhawk 22J
Have a question about this floorplan? Contact Us
Specifications

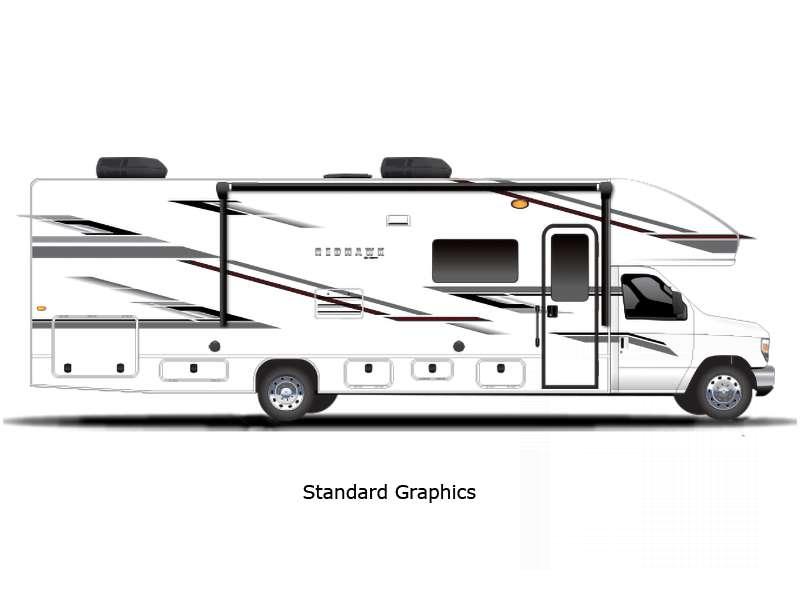

Sleeps 3 Slides 1 Length 24 ft 8 in Ext Width 8 ft 4 in Ext Height 11 ft 6 in Int Height 7 ft Interior Color Albany, Chambray, Nantucket Exterior Color Standard Graphics Hitch Weight 7500 lbs Gross Weight 14500 lbs Fresh Water Capacity 43.5 gals Grey Water Capacity 40 gals Black Water Capacity 31 gals Furnace BTU 30000 btu Generator Onan 4,000 watt MicroQuiet Fuel Type Gas Engine Triton 6.8L EFI V10 Chassis Ford E-450 Horsepower 305 hp Fuel Capacity 55 gals Wheelbase 158 in Number Of Bunks 1 Available Beds Queen Torque 420 ft-lb Refrigerator Type Two Door Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 3 Number of Awnings 1 LP Tank Capacity 42 lbs. Water Heater Capacity 6 gal. Water Heater Type Gas/Electric DSI AC BTU 15000 btu Basement Storage 23.5 cu. ft. TV Info Above Cab 32" LED HDTV Awning Info 14' Power Gross Combined Weight 22000 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Redhawk 25R
Jayco Redhawk 25R class C gas motorhome highlights: Cab-Over Bunk Single Slide ... more about Redhawk 25R
Have a question about this floorplan? Contact Us
Specifications
Sleeps 5 Slides 1 Length 28 ft 8 in Ext Width 8 ft 4 in Ext Height 11 ft 6 in Int Height 7 ft Interior Color Albany, Chambray, Nantucket Exterior Color Standard Graphics Hitch Weight 7500 lbs Gross Weight 14500 lbs Fresh Water Capacity 47 gals Grey Water Capacity 41 gals Black Water Capacity 32 gals Furnace BTU 30000 btu Generator Onan 4,000 watt MicroQuiet Fuel Type Gas Engine Triton 6.8L EFI V10 Chassis Ford E-450 Horsepower 305 hp Fuel Capacity 55 gals Wheelbase 181 in Number Of Bunks 1 Available Beds Queen Torque 420 ft-lb Refrigerator Type Two Door Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 3 Number of Awnings 1 LP Tank Capacity 42 lbs. Water Heater Capacity 6 gal. Water Heater Type Gas/Electric DSI AC BTU 15000 btu Basement Storage 39 cu. ft. TV Info LR 50" TV Awning Info 14' Power Gross Combined Weight 22000 lbs Electrical Service 30 amp Similar Floorplans
-
Redhawk 26XD
Jayco Redhawk 26XD class C gas motorhome highlights: Cab-Over Bunk Two Slides ... more about Redhawk 26XD
Have a question about this floorplan? Contact Us
Specifications
Sleeps 7 Slides 2 Length 28 ft 8 in Ext Width 8 ft 4 in Ext Height 11 ft 6 in Int Height 7 ft Interior Color Albany, Chambray, Nantucket Exterior Color Standard Graphics Hitch Weight 7500 lbs Gross Weight 14500 lbs Fresh Water Capacity 47 gals Grey Water Capacity 41 gals Black Water Capacity 32 gals Furnace BTU 30000 btu Generator Onan 4,000 watt MicroQuiet Fuel Type Gas Engine Triton 6.8L EFI V10 Chassis Ford E-450 Horsepower 305 hp Fuel Capacity 55 gals Wheelbase 181 in Number Of Bunks 1 Available Beds Queen Torque 420 ft-lb Refrigerator Type Two Door Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 3 Number of Awnings 1 LP Tank Capacity 42 lbs. Water Heater Capacity 6 gal. Water Heater Type Gas/Electric DSI AC BTU 15000 btu Basement Storage 36 cu. ft. TV Info Above Cab 32" LED HDTV Awning Info 13' Power Gross Combined Weight 22000 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Redhawk 29XK
Jayco Redhawk 29XK class C gas motorhome highlights: Cab-Over Bunk Single Slide ... more about Redhawk 29XK
Have a question about this floorplan? Contact Us
Specifications
Sleeps 6 Slides 1 Length 32 ft 6 in Ext Width 8 ft 4 in Ext Height 11 ft 6 in Int Height 7 ft Interior Color Albany, Chambray, Nantucket Exterior Color Standard Graphics Hitch Weight 7500 lbs Gross Weight 14500 lbs Fresh Water Capacity 43.5 gals Grey Water Capacity 41 gals Black Water Capacity 32 gals Furnace BTU 30000 btu Generator Onan 4,000 watt MicroQuiet Fuel Type Gas Engine Triton 6.8L EFI V10 Chassis Ford E-450 Horsepower 305 hp Fuel Capacity 55 gals Wheelbase 223 in Number Of Bunks 1 Available Beds Queen Torque 420 ft-lb Refrigerator Type Two Door Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 3 Number of Awnings 1 LP Tank Capacity 42 lbs. Water Heater Capacity 6 gal. Water Heater Type Gas/Electric DSI AC BTU 15000 btu Basement Storage 87 cu. ft. TV Info Above Cab 32" LED HDTV Awning Info 16' Power Gross Combined Weight 22000 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Redhawk 31XL
Jayco Redhawk 31XL class C gas motorhome highlights: Cab-Over Bunk Bunk Beds Two ... more about Redhawk 31XL
Have a question about this floorplan? Contact Us
Specifications
Sleeps 10 Slides 2 Length 32 ft 6 in Ext Width 8 ft 4 in Ext Height 11 ft 6 in Int Height 7 ft Interior Color Albany, Chambray, Nantucket Exterior Color Standard Graphics Hitch Weight 7500 lbs Gross Weight 14500 lbs Fresh Water Capacity 47 gals Grey Water Capacity 41 gals Black Water Capacity 32 gals Furnace BTU 30000 btu Generator Onan 4,000 watt MicroQuiet Fuel Type Gas Engine Triton 6.8L EFI V10 Chassis Ford E-450 Horsepower 305 hp Fuel Capacity 55 gals Wheelbase 223 in Number Of Bunks 3 Available Beds Queen Torque 420 ft-lb Refrigerator Type Two Door Refrigerator Size 8 cu ft Cooktop Burners 3 Number of Awnings 1 LP Tank Capacity 42 lbs. Water Heater Capacity 6 gal. Water Heater Type Gas/Electric DSI AC BTU 15000 btu Basement Storage 41 cu. ft. TV Info Above Cab 32" LED HDTV Awning Info 10'8" Power Gross Combined Weight 22000 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
Redhawk Features:
Standard Features
Customer Value Package (Mandatory)
- JRide® Package: Computer-balanced driveshaft, standard front and rear stabilizer bars, Hellwig® helper springs, rubber isolation mounts

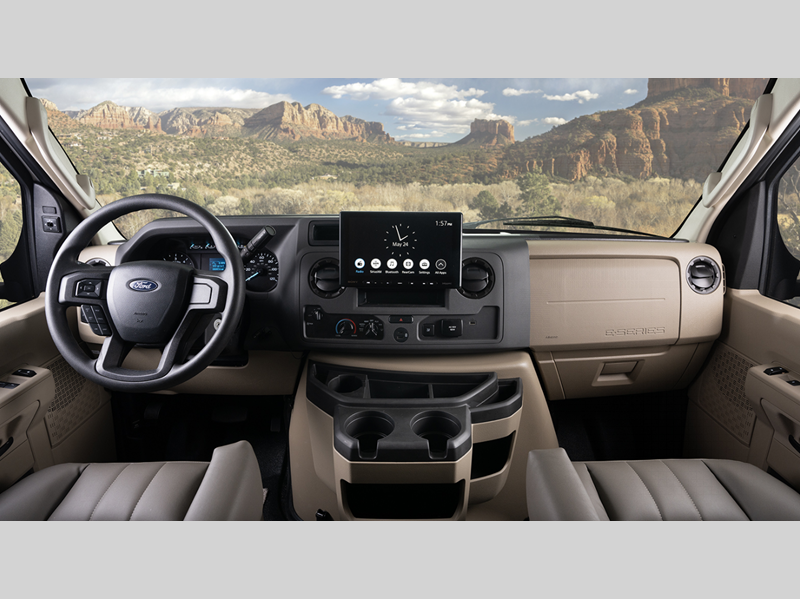

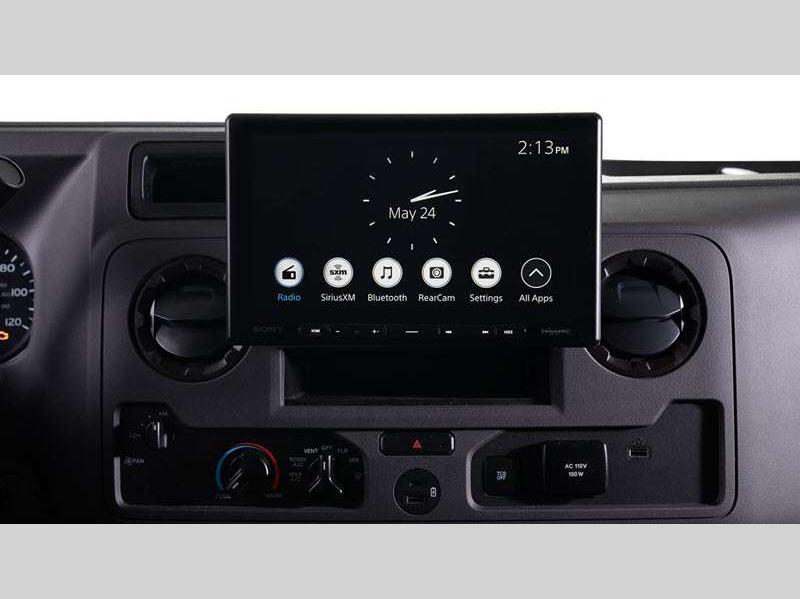

- Jensen 9000 Infotainment System

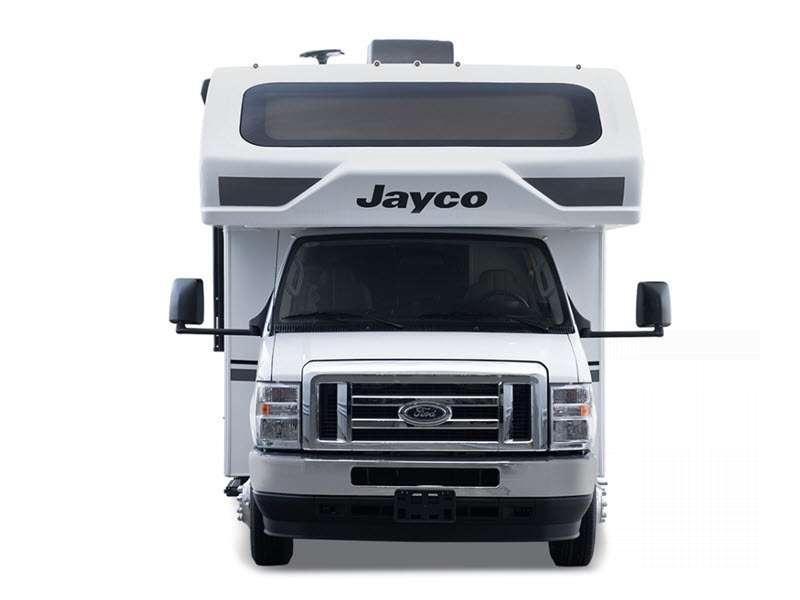

- One-piece seamless front cap
- 12V electric patio awning
- 1000-watt inverter
- Black holding tank sprayer

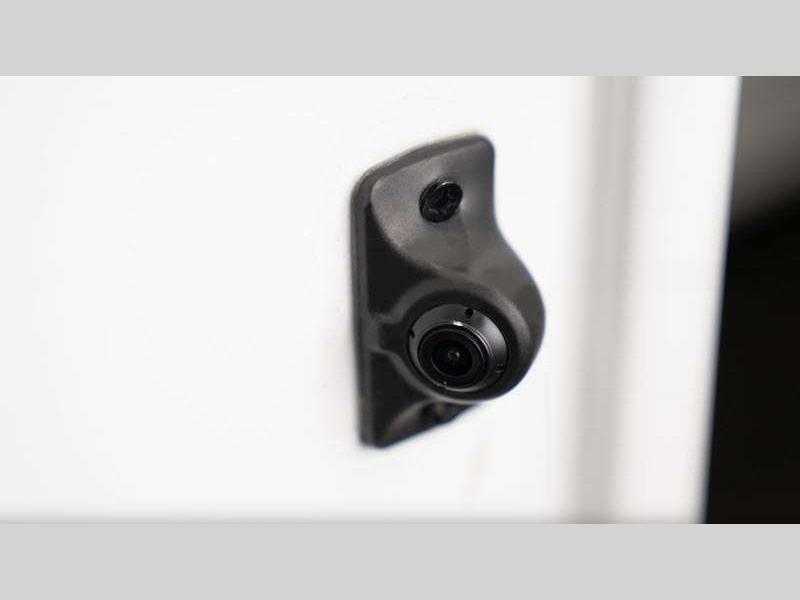

- Back-up camera
- Heated holding tanks (12V pads)
- 8 cu. ft. refrigerator
- 32” LED HDTV
Driving Equipment
- Ford E-450 chassis
- Triton 6.8L EFI V-10 305 HP engine with 420 lbs./ft. torque
- 6-speed automatic TorqShift series transmission with overdrive
- 14,500-pound GVWR
- 22,000-pound GCWR
- 7,500-pound hitch with 7-pin plug
- 120-amp alternator
- 55-gallon fuel tank
- Driver and passenger air bags
- Power anti-lock brakes with power steering
- Tilt steering wheel
- Auxiliary start switch
- A/C and cruise control
- Remote-controlled, sideview mirrors
- Power windows and door locks
- Third brake light
Exterior Equipment
- Vacuum-bonded, laminated roof, floor and sidewalls
- Bead-foam insulation (R-15 max roof, R-9 max floor, R-5 max walls)
- Aluminum running boards
- Fiberglass, radius-cornered entrance door with screen door

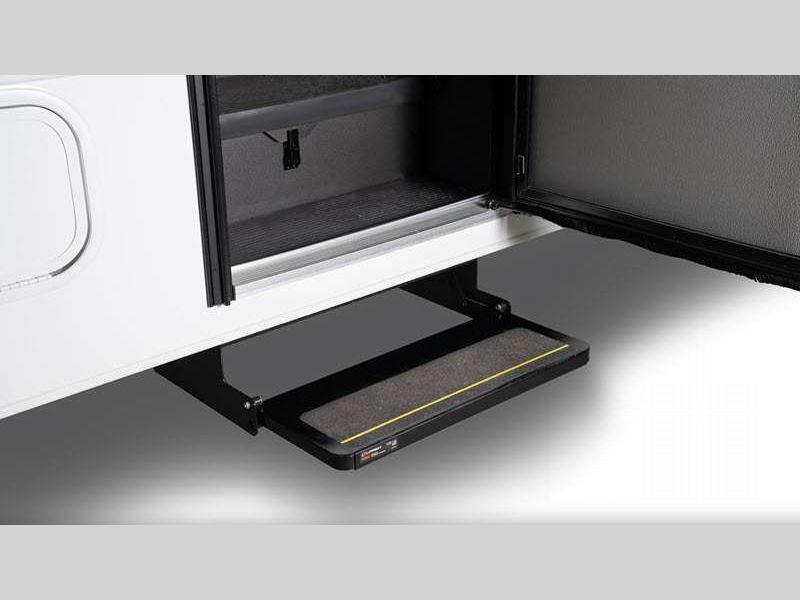

- Electric-powered entrance step
- Pass-through storage compartment with light (select models)
- Onan 4,000-watt MicroQuiet generator
- 42-lb. propane tank
- 120V G.F.C.I.-protected exterior receptacle
- 12V electrical system with 120V, 60-amp power converter
- 30-amp power cord
- Slideout battery tray
- Outside shower
- 4" bumper-tube sewer hose storage
- Roof ladder
- Leveling jack prep

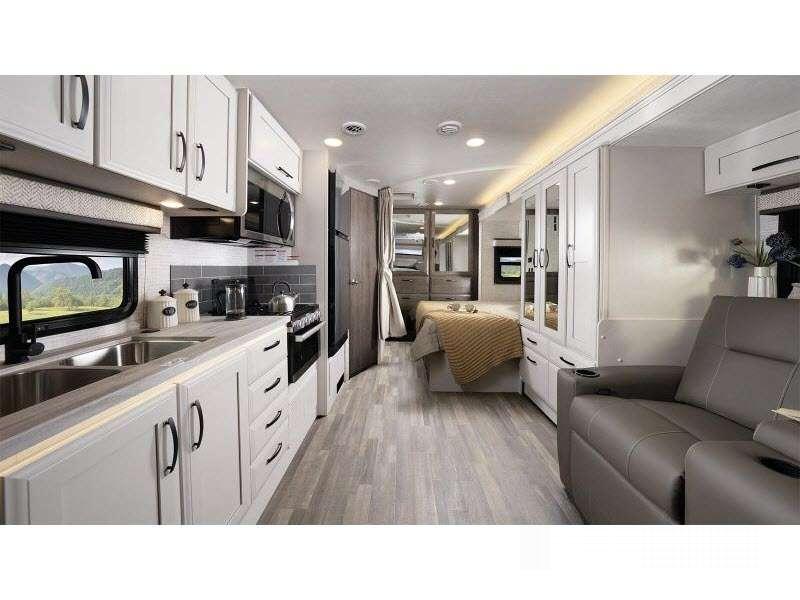

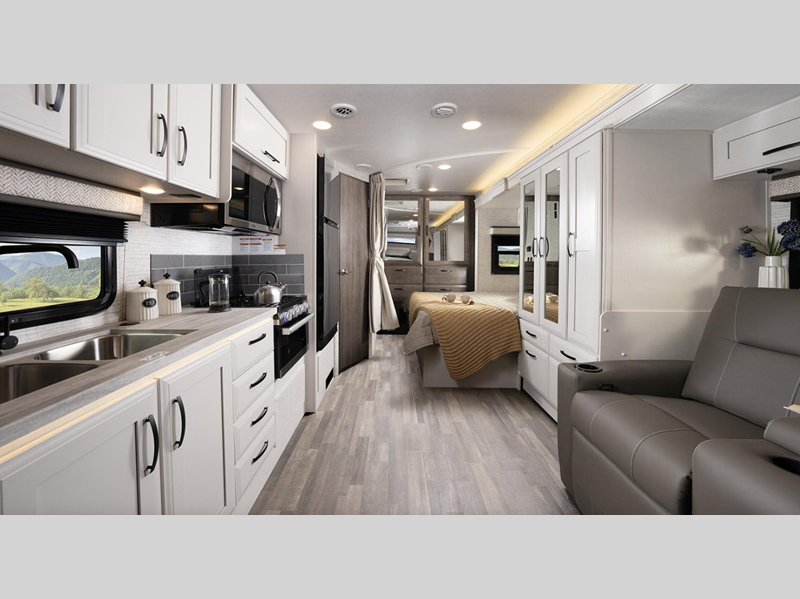

Interior Equipment
- Recessed LED lighting
- 84" ceiling height
- Ball bearing drawer guides

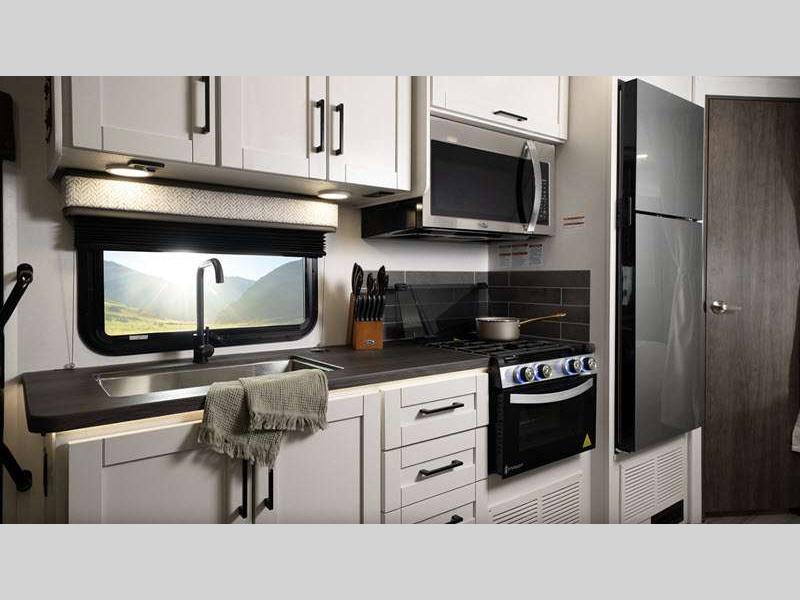

- 3-burner range with 9,000-BTU SuperBurner and piezo igniter

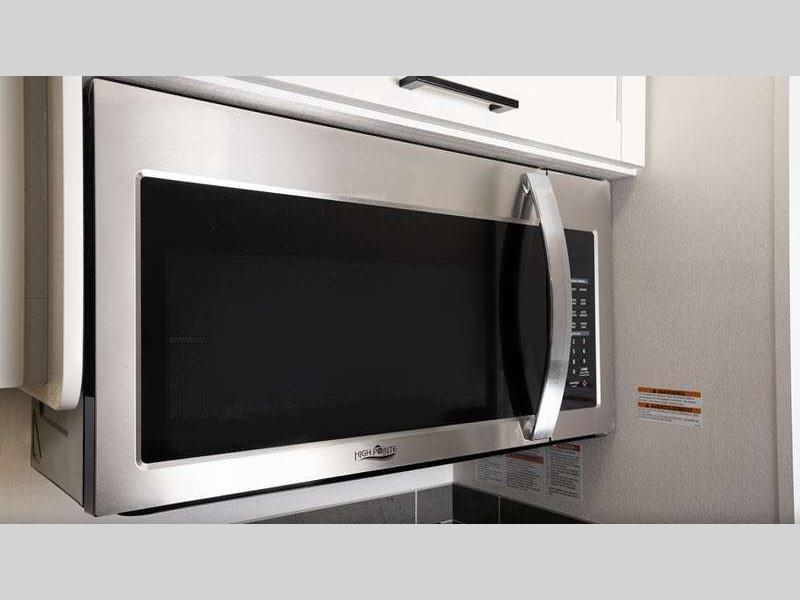

- Convection microwave oven (N/A in 31XL)
- 12V demand water pump
- 6 gallon gas/electric DSI auto-ignition water heater
- Water filtration system
- Dream Dinette mechanism, easily raises and lowers dinette tabletop (N/A in 29XK)
- Lap safety belts on all living area seats
- Linoleum flooring
- Interior command center
- Cable TV hookup with RG-6 coax
- Digital antenna with signal booster
- 15,000-BTU ducted air conditioner
- 31,000-BTU furnace with wall thermostat with auto-ignition
- ABS shower with decorative surround
- Removable clothing rod in shower
- Skylight in shower
- Toilet with foot flush
- Queen-sized bed with bedspread
- Under-bed storage
- Large wardrobes

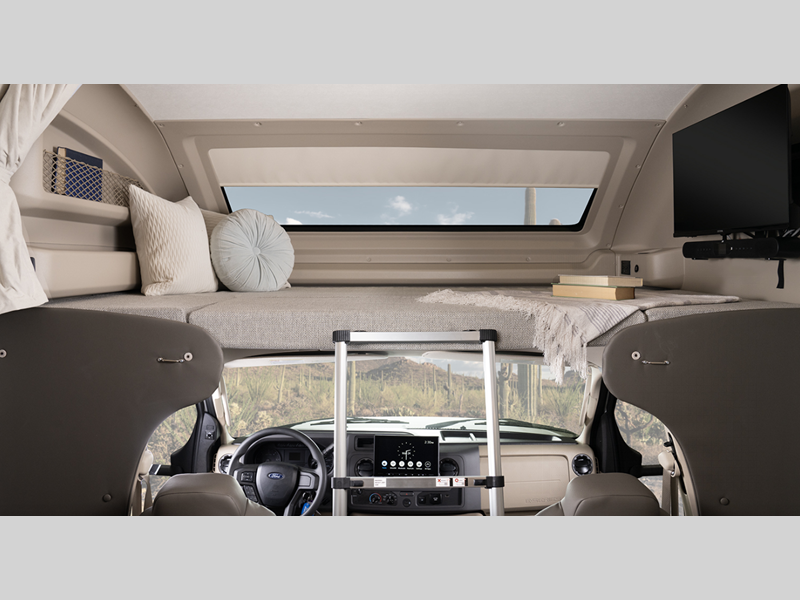

- Full cab-over bunk with headboard (750-lb. rating)
- Bunk beds (300-lb. rating) (31XL)
Options
- Canadian Standards (22C, 22J, 25R, 26XD, 29XK, 31XL)
- Customer Value Package - (CVP) - 32" LED TV, 8 cu. ft. Refrigerator w/Manual Controls, 1000 Watt Inverter, Backup Camera, Seamless Front Fiberglass Cap, Infotainment System, JRide® Package, Power Awning, Tank Heating Pads, White Fiberglass Sidewalls
- Automatic Hydraulic Leveling Jacks
See us for a complete list of features and available options!
All features and specifications are subject to change.
